GD-A20L
    Publish time 2020-12-12 13:59

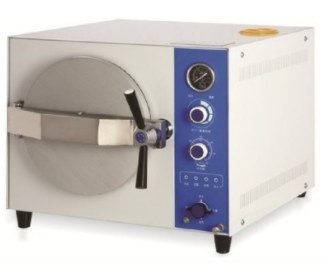

Portable 20L 24L Table Top Autoclave Class B stainless steel Autoclave Steam Sterilizer



  GD-A20L






Specification


Characteristics:

1. Indicator light indicates working state.

2. For 4~6 minutes rapidly sterilizing.

3. Sterilizing temperature and time can be preset.

4. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

5. Over temperature & over pressure auto-protection.

6. Safe protection of water lacking.

7. Exhaust the cool air automatically.

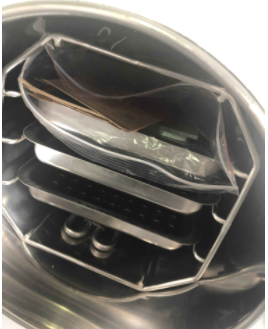

8. With three stainless steel sterilizing plates.

9. The chamber of the sterilizer is made of stainless steel.

10. Automatically shut off with beep reminding after sterilization.



Technical data:


MODEL TECHNICAL DATA

GD-A20

GD-A24

Sterilizing chamber volume

20L(φ250×420 mm)

24L(φ250×520 mm)

Maximum working pressure

0.22Mpa

Maximum working temperature

134

Adjustment of temperature

105-134

Timer

0-60 min

Chamber temperature equal

≤ ± 1

Source power

1.5KW/AC 220V 50Hz (AC110V 60HZ)

Sterilizing plate

340×200×30 mm (3 piece)

400×200×30 mm (3 piece)

Dimension

480×480×384 mm

580×480×384 mm

Package dimension

700×580×500 mm

800×580×500 mm

 G. W/N.W

44/40 kg

50/45 kg
